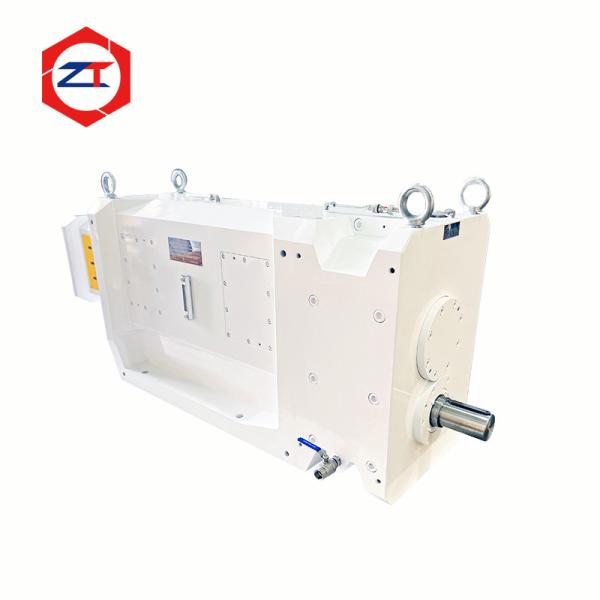

New 16-18 Torque Cast Iron 95mm SHE Super High TorqueTwin Screw Extruder Gearbox
SHE Twin Screw Extruder Gearbox Introduction
Twin Screw Gearbox adopting latest standard ISO1328,the precision of cylindrical gear of spherical involute, and combining our long term experience and specialty of twin screw extruder, SHE gearboxes are meticulously designed with top advanced designing ideas in the world for co-orientated rotating twin screw extruder, with entirely independent Intellectual Property Rights.
The gears are made of carburizing steel of high-strength alloy of good quality by carburizing and quenching for teeth, of which all the gear grinding processes are finished by imported gear grinding machines. Gear parameters are optimized and specially designed for the characteristics of twin screw extruder, reducing stress concentration on root of gear and improving gear surface conditions. We have improved gear intension of flexural fatigue, fatigue strength and ratio of wide diameter. We have also adopted the latest designing idea and technology of heating treatment for the structure of gears, thereby ensured gears from uniformity of precision and strength.
Features:
----Double drive design enables the B axis to be driven by two gears without increasing the tooth width.
----Optimal structure and complex assembly lead to the cost rise.
----All bearings are sourced from global recognized brands,so output torque is more stable.
----The gearbox improves production efficiency and increases the service life.
SHE Twin Screw Extruder Gearbox Parameters
| SHE95 Gearbox Power&Torque Table |
| Model | RPM(r/min) | Power(kw) | Torque Grade(T/A3) | CD(mm) |
| SHE95 | 300 | 500 | 16-18 | 78 |
| 400 | 710 | 16-18 |
| 500 | 850 | 16-18 |
| 600 | 1000 | 16-18 |
| 800 | 1400 | 16-18 |
| 900 | 1600 | 16-18 |
| 1200 | 2100 | 16-18 |
Production Process
| NO.1 Workblank Select high quality and hardness of ductile iron material. |
NO.2 Rough Machining Many sets of rough machining equipment,such as Gantry-type milling,Radial drill,etc.Realized the blank shape and the inner hole of rough maching. | |
| NO.3 Finish Machining Many sets of finishing equipment,such as CNC Grinding Machine,NC Boring Machine,etc.Further processing of each working procedure,the accuracy is higher,only you. |
NO.4 Gearbox Inspection High-end testing equipment and instruments,processional inspection team,the gearbox shape,center distance,inner hole and into the next procedure,after inspection and correct. | |
 | NO.5 Assemble Strong assembly and R&D team,the parts will be assembled according to the drawing,step by step audit,by running test after product finished. |
NO.6 Delivery Export standard packing,packaging,use at the bottom of the fixed plate,ensure that the peoduct does not shift in transit. |  |
